0 ~ 10 Bar Diesel Generator Set Parts Mechanical Oil Pressure Sender Sensor

Wuhan Chidian Technology Co., Ltd
Contact Now

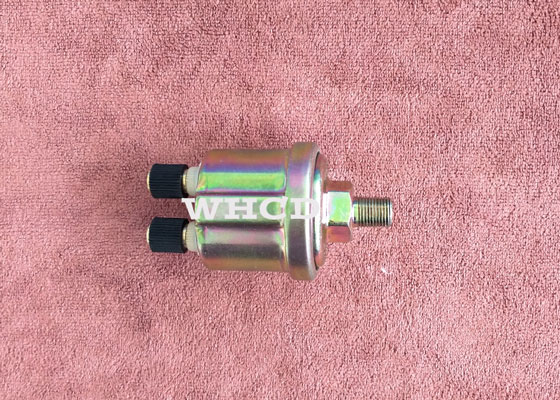

0 ~ 10 Bar Diesel Generator Set Parts Mechanical Oil Pressure Sender Sensor

  • 1
  • 2

Brand Name : WHCD

Model Number : CDYG303020400

Certification : RoHS

Place of Origin : Hubei, China

MOQ : 25 pcs

Price : Negotiable

Payment Terms : T/T, L/C, T/T, Western Union, MoneyGram

Supply Ability : 20,000 pcs per month

Delivery Time : 3 - 5 working days

Packaging Details : PE bag, Standard Carton; It also can be customized according to your requirements

Material : Steel

Appearance : Color Zinc Plated

Function : Oil Pressure Measurement

Protection : IP66

Thread Fitting : NPT 1/4

Resistance Value : 10 ~ 184 Ω

Alarm : 0.8 Bar

Measuring Range : 0~10 Bar

Output : Two Wires

Application : Cummins B/C, Chaochai6102, Xichai6100/6108/6112, Yuchai6110/6102/6108, Shangchai6114D, Dachai6112 ...

Contact Now

0 ~ 10 Bar Diesel Generator Set Parts Mechanical Oil Pressure Sensor

Product Description

The oil pressure sensor is installed on the main oil channel of the engine. When the engine runs, the pressure measuring device detects the pressure of oil and transfers the pressure signal to the electrical signal to the signal processing circuit. The pressure signal is connected to the oil pressure meter. When the voltage is below the alarm voltage, the alarm circuit output the signal and pass through, alarm light is on.

Feature

Oil pressure sensor combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature etc.

Technical Data

Operating voltage 6~24V
Conducting power < 5W
Operating temperature -25 ~120℃ (120℃ MAX 1H)
Measuring range 0~5 Bar or 0~10 Bar
Alarm 0.8 Bar or 1.4 Bar
Output signal 10~184Ω
Thread fitting NPT1/4, NPT1/8, M10, M10x1, M16x1.5 or customized
Protection rank IP66

Instruction

Oil Pressure Sensor is installed in the down side of the throttle door spindle, it will change the open size of throttle door into electrical signal then pass it to the controlled computer ECU, and the computer ECU judge the engine work situation according to this signal, to control the oil injection according to different work situation for the requirement of mixture concentration.

0 ~ 10 Bar Diesel Generator Set Parts Mechanical Oil Pressure Sender Sensor
Basic Function Test

0 ~ 10 Bar Diesel Generator Set Parts Mechanical Oil Pressure Sender Sensor
Life Cycling Test

0 ~ 10 Bar Diesel Generator Set Parts Mechanical Oil Pressure Sender Sensor
Vibration Test

0 ~ 10 Bar Diesel Generator Set Parts Mechanical Oil Pressure Sender Sensor
Vibration Test Parameters
0 ~ 10 Bar Diesel Generator Set Parts Mechanical Oil Pressure Sender Sensor
Temperature Cycling Parameters

Our Service

1. High quality with competitive price & stock.

2. Product Warranty: 12 Months
3. Sample order or Small order Accept,

4. OEM Manufacturing welcome: Product, Package...

5. Fast Delivery: delivery within 7 - 10 working days

6. Easy to pay, various payment methods.
7. We will reply you in 24 hours. If you don't receive our reply, please kindly re-sent mail or give a call any time.

8. You may consider to send the defective item via economical way, and we can send back together with your next order.

Advantage

1.Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service

Q & A

Question Answer
What’s your main products? oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor
Where are you? Wuhan city, Hubei Province, China
Do you accept OEM? Yes, OEM is welcomed
Are you manufacturer or trading company? We are manufacturer with export license.
Do you provide sample? Yes
Do you have any certificate? Yes,we have ISO/TS16949, RoHS
What’s the MOQ? There’s no limit for MOQ

Company Introduction

Wuhan Chidian Technology Co., Ltd is a professional manufacturer specializing in automotive sensor, located in the beautiful Wuhan Eco-Tech Development Zone. Mainly engaged in R&D, production and sale of automotive pressure sensors. We have first-class technical team, with strong R & D capability and rich experience in production management. In the production line, we have the most advanced and completed sets of equipment to ensure product quality and reliability. Our product quality has won user community's good reputation.

Looking forward to the future, the company is moving into the fast lane of development and will continue to adhere to the concept of creating quality products to serve global customers. Our mission is to be the most valuable and competitive automotive pressure sensor in the world.
