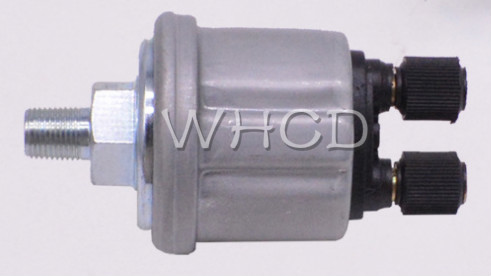

1/4 NPT 1/8 NPT Diesel Generator Part With Warning Contact

Product Categories
Wuhan Chidian Technology Co., Ltd
Contact Now

1/4 NPT 1/8 NPT Diesel Generator Part With Warning Contact

  • 1
  • 2
  • 3

Brand Name : WHCD

Model Number : CDYG3-01120300

Certification : ANSI,ISO9001

Place of Origin : WUHAN,CHINA

MOQ : 50pcs

Price : $4/PC-$8/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/year

Delivery Time : 5-25 working days

Packaging Details : 25PCS/foam box , 100pcs / out carton

Measuring range : 0-5bar or 0-10bar

output signal : standard resistance value:10-184ohm

protection rank : IP66

Conducting power : <5w

voltage : 6-24V

operating temperature : -25~+120(120 degress MAX 1H)

alarm : 0.8bar or 1.4bar

thread fitting : NPT1/4.NPT1/8,M10,M10X1 or customized as requires

Contact Now

with warning contact 1/4NPT 1/8 NPT diesel generator genset part VDO 0-10 Bar Engine Sender VDO Oil Pressure Sensor

APPICATION:

1.It combines the advantages of excellent anti-vibrat ion performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
2.It is largely applied t o many fields, such as t he engine pipe of vehicles and ships, water processing projects,inspection and control of indust rial processes, hydraulic
and pneumatic control project s, etc.
3.Protection rank: IP66

Product features:

operating voltage 6-24V
Conducting power <5W
Operating temperature -25 ~120℃(120℃ MAX 1H)
Measuring range 0~5Bar or 0~10Bar
Alarm 0.8Bar or 1.4Bar
Output resistance 10~184Ω
Thread fitting NPT1/4,NPT1/8,M10,M10X1 or customized as requires
Material color znic plated / Blue and white znic plated
protection rank IP66

Warranty

Within one year after shipment, except for improper installation and operations by user

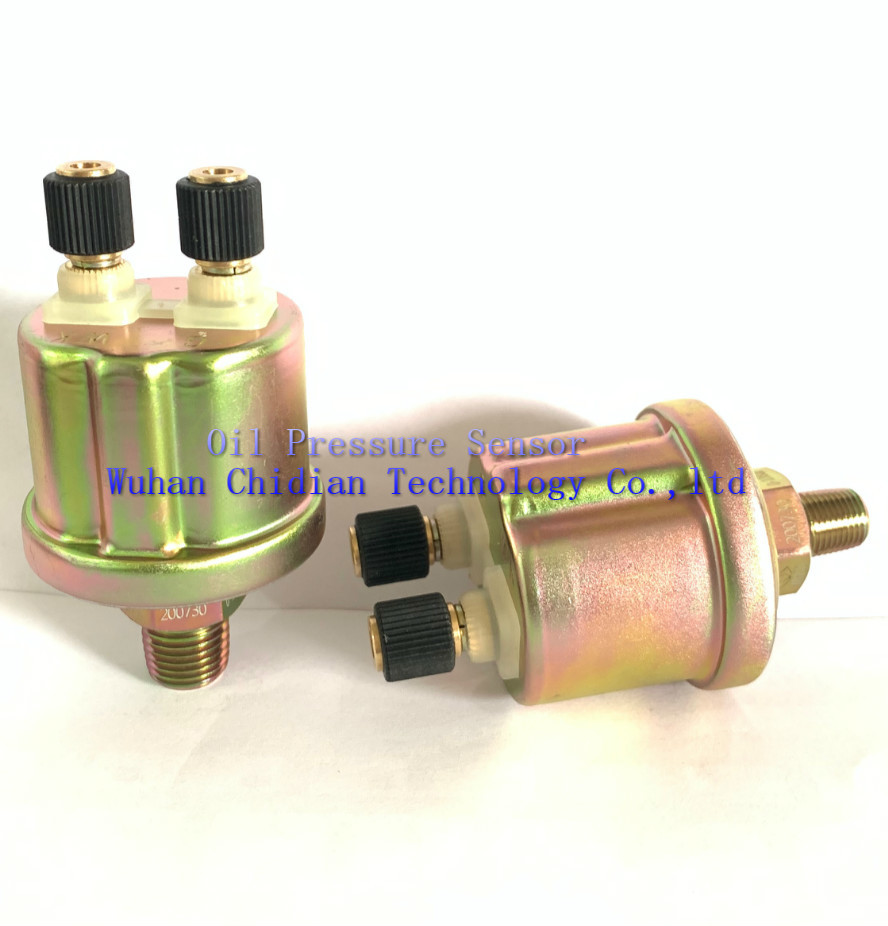

More pictures for our products for your reference :

1/4 NPT 1/8 NPT Diesel Generator Part With Warning Contact1/4 NPT 1/8 NPT Diesel Generator Part With Warning Contact1/4 NPT 1/8 NPT Diesel Generator Part With Warning Contact1/4 NPT 1/8 NPT Diesel Generator Part With Warning Contact
